Description
HORSE POWER : 6hp
WEIGHT : 59.0 lb
SHAFT LENGTH : 20″ (Long)
STARTING : Manual
FUEL DELIVERY : Carburetor
STEERING : Tiller
FEATURES
- Newly redesigned “D” Model
- Factory Installed 12V 60W 5A Alternator
- Advanced Digital CD Ignition System
- Low Oil Pressure Warning Indicator
- ESG Over Rev RPM Limiter
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Saltwater Rated
- Sacrificial Zinc Anodes
- Adjustable Steering Friction Setting
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carrying Handle
- High Thrust Propeller (8.375″ Dia. X 6.0″ Pitch)
- Start-In-Gear Protection
- Thermostatically Controlled Cooling
- Advanced Cross Flow Induction System
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-The-Propeller Exhaust
- 0.3 Gallon Internal Tank
- 3.1 Gallon Fuel Tank / Fuel Line
- Safety Lanyard Cut-Off Switch
- Operating Manual & Emergency Tool Kit
- Tohatsu 5-Year Warranty
SPECIFICATIONS
| MODEL | MFS6DWSPROL |
|---|---|
| SKU | MFS6DWSPROL |
| MANUFACTURER | Tohatsu |
| COUNTRY OF MANUFACTURE | Japan |
| HORSEPOWER | 6hp |
| WEIGHT | 59.0 |
| SHAFT LENGTH | 20″ (Long) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | External |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 123 cc (7.5 cubic inches) |
| BORE AND STROKE | 59 x 45 mm (2.32 x 1.77 inches) |
| FULL THROTTLE RPM RANGE | 5,000-6,000 RPM |
| IGNITION SYSTEM | Digital CD Ignition |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | 0.3 Gal. Internal AND 3.1 Gal. Fuel Tank + Quick Connect Fuel Line |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ) |
| OIL CAPACITY | 15 fl. oz. (450 ml) |
| LUBRICATION | Wet Sump |
| ALTERNATOR | 12V 60W 5A (standard on 6hp Sail Pro models) |
| COOLING SYSTEM | Water-Cooled, Thermostatically Controlled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 2.15:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (front mount shifter) |
| PROPELLER | 8.375″ Dia. X 6.0″ Pitch High-Thrust 3-Blade |

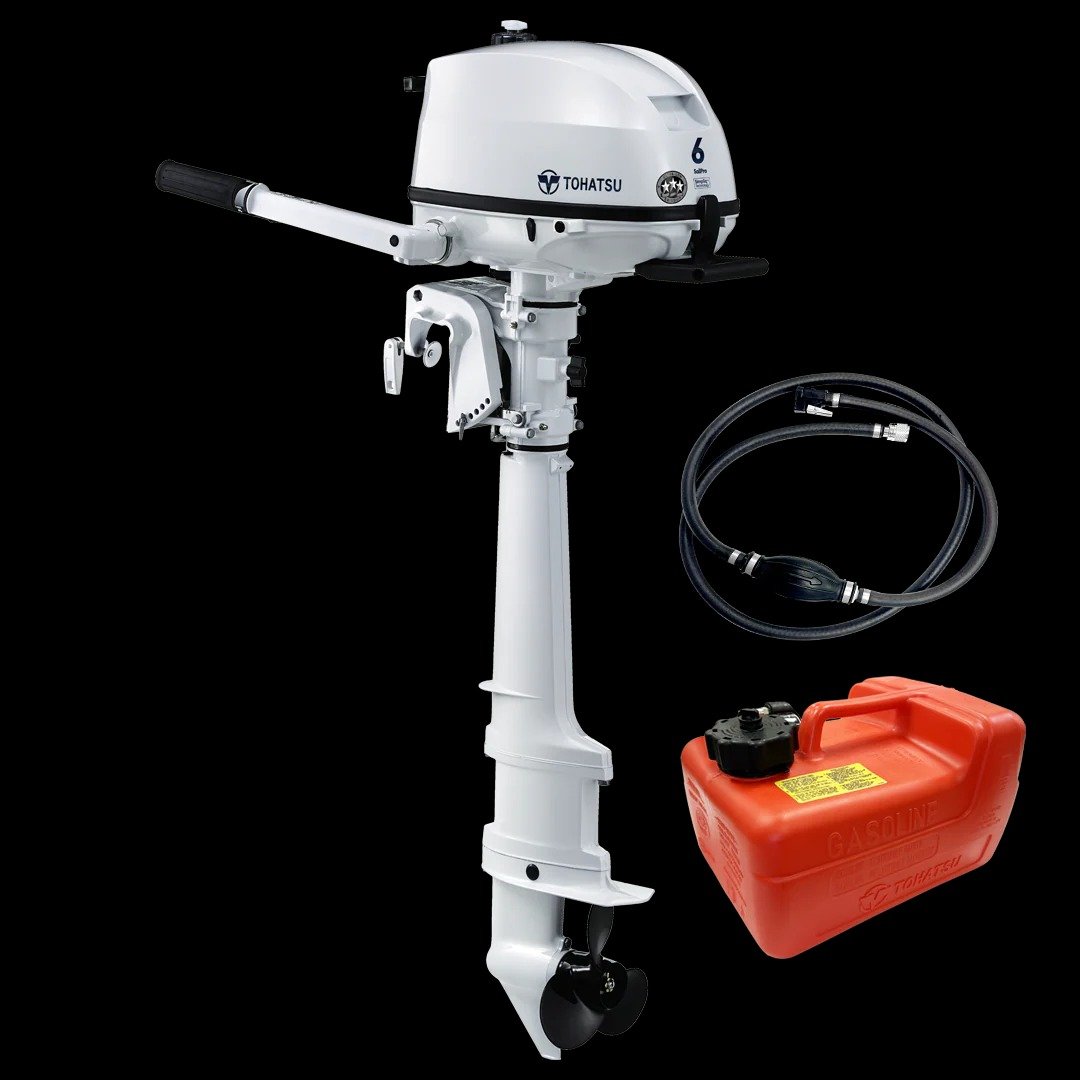

IN THE BOX
- Fuel Tank (3.1 gallon external and 0.3 gallon internal)
- Quick Connect Fuel Line
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- Tohatsu 5-Year Warranty
SHAFT LENGTH GUIDELINES
